In stock

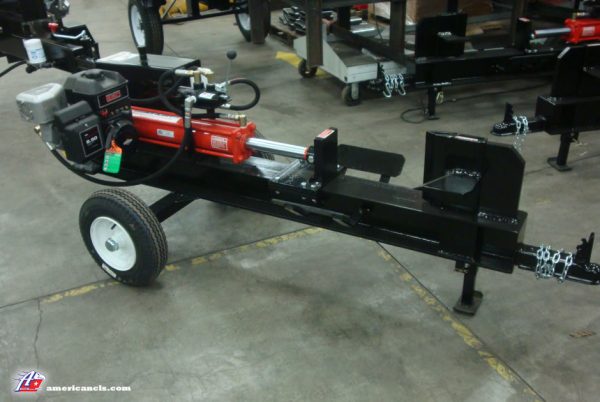

AM-24H Low Boy

$250.00

AM-24H Low Boy, is a popular choice for Residential Homeowners throughout the United States and Canada.

SKU: 9015-DF-3 Category: Tag: REQUEST QUOTE
AM-24H Low Boy
  • Description
  • Gallery
  • AM-24H – Standard Items
  • AM-24H – Options
  • Reviews (0)

The Low Boy, AM-24H, is a popular choice for Residential Homeowners throughout the United States and Canada. Clear separation from our competitors is evident as you review this Model. Examples of extended durability comes from 6” I-Beams, 2” Diameter Cylinder Rods and our rigid attention to every detail.

  • AM-24H – Specifications

Working Height 15″
Cycle Time 13 Seconds
Hydraulic 2-Stage Pump 11 or 13 GPM
Tie Rod Cylinder Yes
Cylinder (Length X Diameter X Rod Size) 4″ X 24″ X 2″
Wedge Height 10″
Highway Tires 8″
Fully Assembled Machine (L X W X H) 85″ X 35″ X 34″
Weight 510 lbs.
Hitch For Towing 2″
Finish Powder Coat
Maximum Log Opening 26″
Hydraulic System – Oil Included Yes
Engine Briggs Intek or Honda GX

Gallery

AM-24H – Standard Items

  • All Fluids Included
  • Machine Fully Run & Tested
  • Working Height 15″ to Top of Beam
  • 6″ I Beam
  • 10″ Wedge
  • Auto Return Valve
  • Briggs Intek 800 Series
  • 11 GPM, 2 Stage Hydraulic Pump
  • 8″ Rim, Highway Tires
  • Powder Coat Finish
  • Safety Chains
  • 2″ Hitch
  • 4 “x 24″ x 2” Cylinder
  • Bolt On Tabs for Cradle Option
  • Wedge Backer

AM-24H – Options

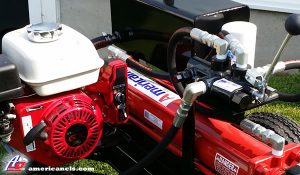

  • Honda 160 GX Electric Start
  • Honda 160 GX
  • 900 Series Briggs Intek with 13 GPM 2-stage Pump
  • Log Cradles
  • 4-Way Splitting Head
