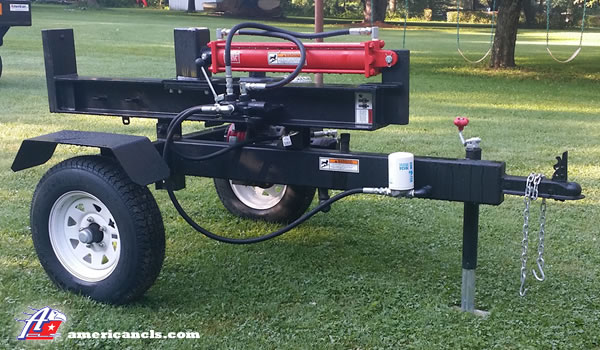

AM-25HV Log Splitter

$65.00

We have Standard 24′ Length Cylinders with Optional 30″ and 36″ Lengths. Our Standard 9″ Tall Splitting Head makes quick work of Longer Length Wood.

SKU: 9015-DF-4-1-1-1-1-1 Category: Tags: , REQUEST QUOTE
Sale
AM-25HV Log Splitter
  • Description
  • Gallery
  • AM-25HV - Standard Items
  • AM-25HV – Options
  • Reviews (0)

We have Standard 24′ Length Cylinders with Optional 30″ and 36″ Lengths. Our Standard 9″ Tall Splitting Head makes quick work of Longer Length Wood. And these machines come fully run and tested. American CLS Builds machines READY TO WORK upon Delivery !

  • AM-25HV – Specifications

Cycle Time 10 Sec.
Hydraulic 2-Stage Pump 16 GPM
Tie Rod Cylinder Yes
Cylinder 4″ X 24″ X 2″

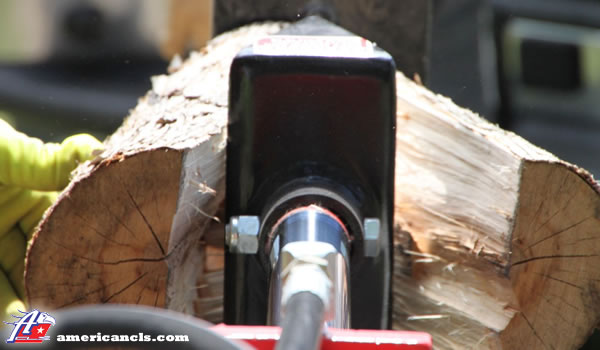

Wedge Height 9″
Highway Tires 8″
Fully Assembled Machine (L X W X H) 98″ X 55″ X 46″
Weight 650 lbs.
Coupler For Towing 2″
Finish Powder Coat
Maximum Log Opening 26″
Hydraulic System – Oil Included Yes
Engine Briggs 1450 Intek or 8HP Honda GX or Honda 270 GX Electric Start

Gallery

AM-25HV - Standard Items

  • All Fluids Included
  • Machine Fully Run & Tested
  • Working Height 31″ to Top of Beam
  • 6″ I Beam
  • 9″ Wedge
  • Auto Return Valve
  • Engine Start – Manual
  • Briggs Intek 1450 Series
  • 16 GPM, 2 Stage Hydraulic Pump
  • 8″ Highway Tires
  • Powder Coat Finish
  • Safety Chains
  • 2″ Hitch
  • 4 x 24 x 2 Cylinder

AM-25HV – Options

  • 270 Honda GX Electric Start Engine
  • 8 HP Honda GX Engine
  • 13″/5-Lug Highway Tires / Steel Fenders
  • 4 x 30 x 2″ Cylinder
  • 4 x 36 x 2″ Cylinder
  • Log Cradles
