AM-24HH High Boy
Starting at $2,920 this AM-24HH is built every bit as rugged, as all our 6″ Beam Machines. No compromises. A SOLID BASE MACHINE. With Standard 13″ Rim, 5 Lug . Highway Tires . Powered by a Honda 200 GX Honda / 13 GPM 2-stage pump. This American CLS built log splitter, is a popular choice with residential and small businesses throughout North America.
REQUEST A QUOTE- AM-24HH - Standard Items
- AM-24HH - Options
- All Fluids Included
- Fully Run & Tested at our Facility
- 200 GX Honda (3 Year Warranty)
- 13 GPM 2-stage Pump
- Heavy Duty 6″ Frame
- 25″ Working Height
- 4″ X 24″ X 2" Cylinder

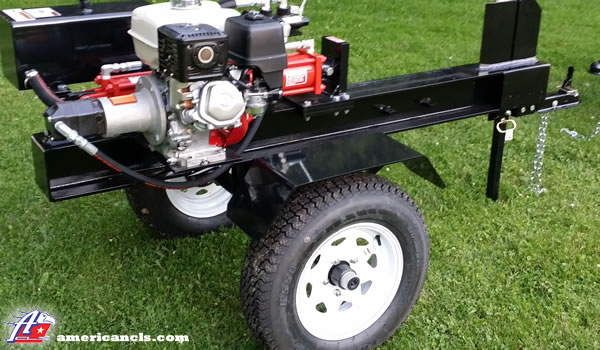

- 13″ Highway Tires
- Auto Return Valve
- Powder Coat Finish
- 2″ Coupler & Safety Chains
- Wedge Backer
- Bolt On Tabs for Cradles
- Bolt On Tabs for Fenders
- Bolt On Pan Capability
- Honda GX Electric Start

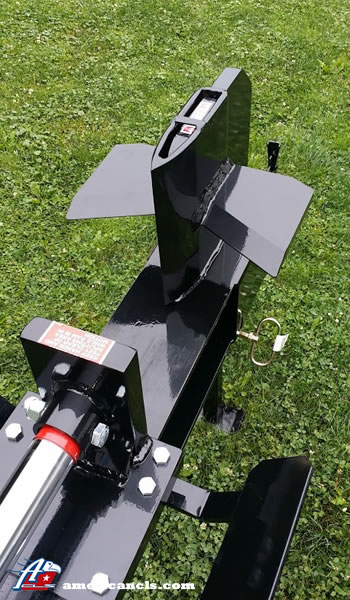

- 4-Way Wedge
- 6-Way Wedge

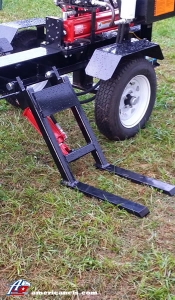

- Log Lift With Diamond Plate Cover & Cradle

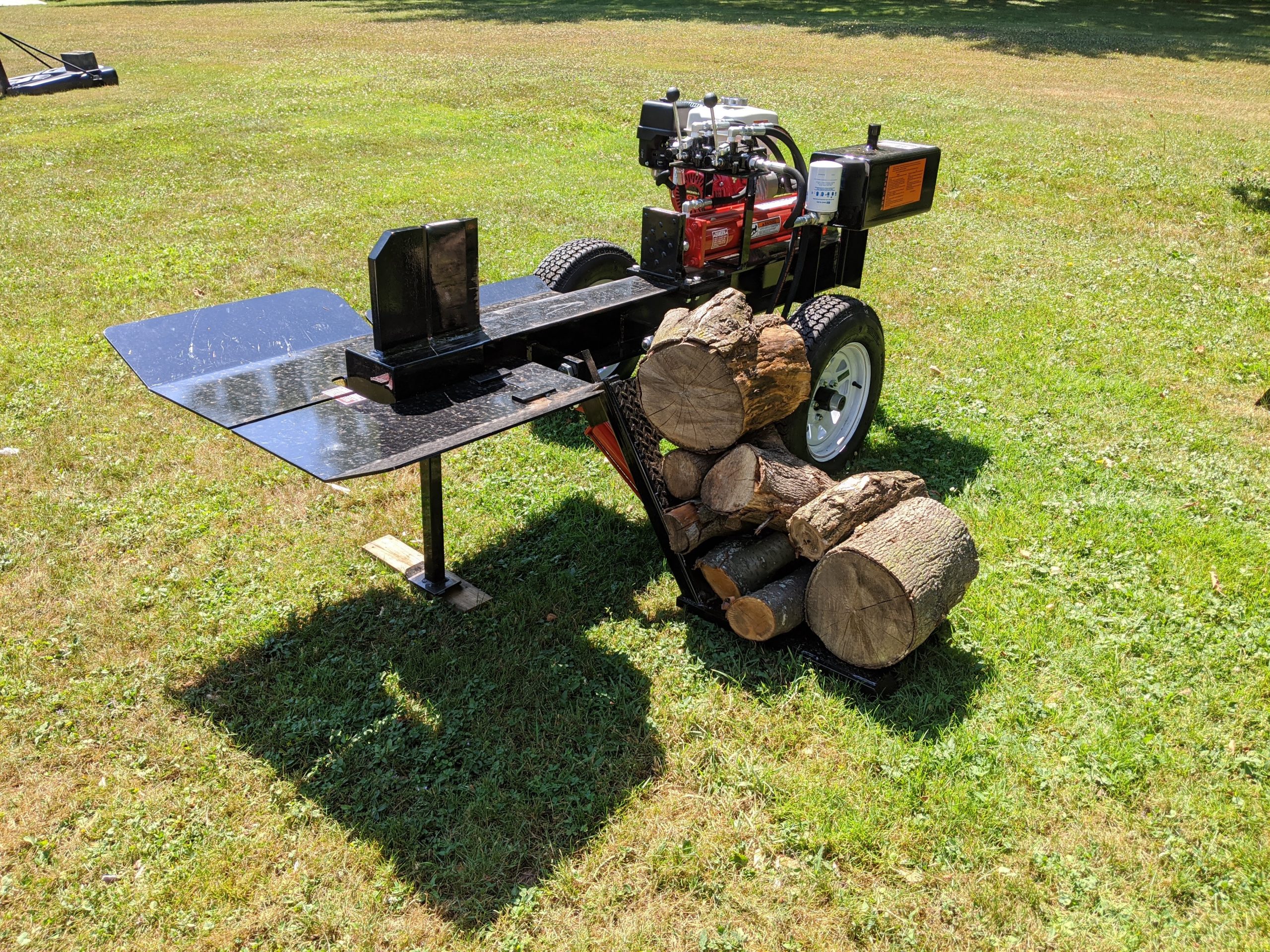

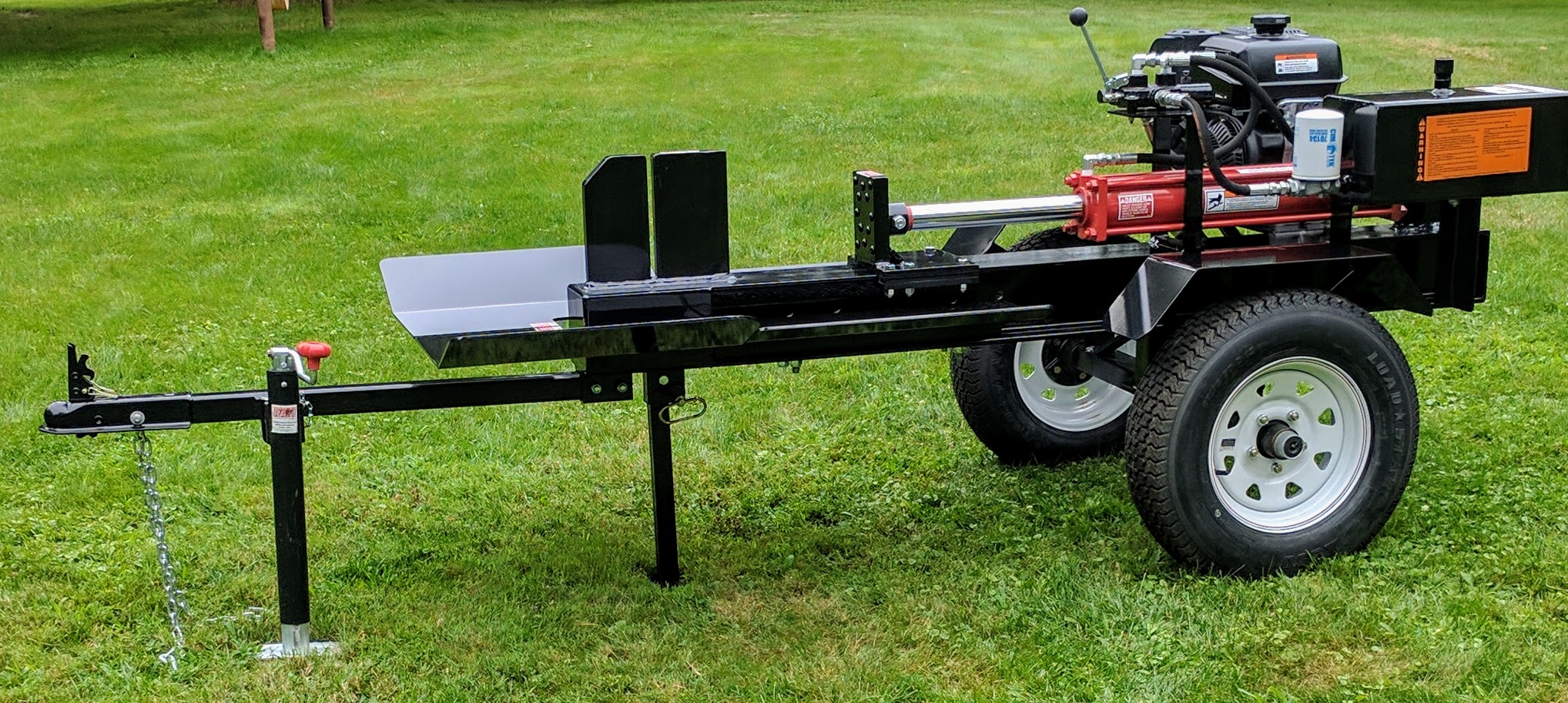

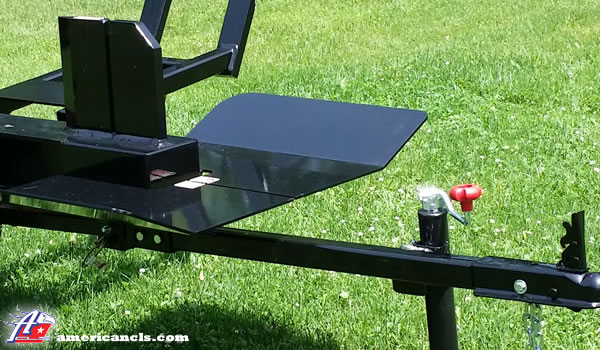

- Pans With Extended 2" Coupler Crank Jack
- Cradle Pair

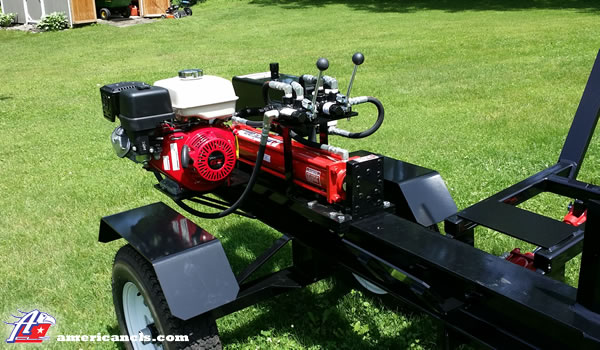

- Large Steel Fenders

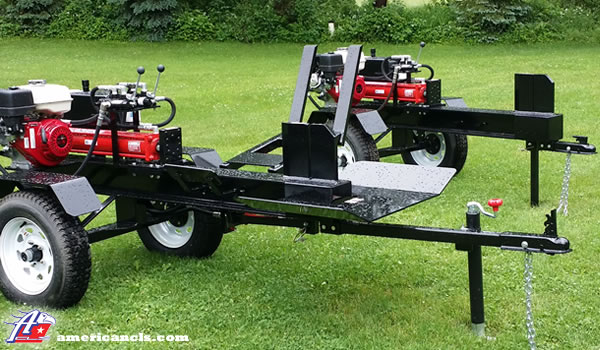

Photos of Options
Videos Splitting Wood
| Working Height | 25″ |
| Cycle Time | 13 Sec. |
| Hydraulic 2-Stage Pump | 11 or 13 GPM |
| Tie Rod Cylinder | Yes |
| Cylinder (Length X Diameter X Rod Size) | 4″ X 24″ X 2″ |

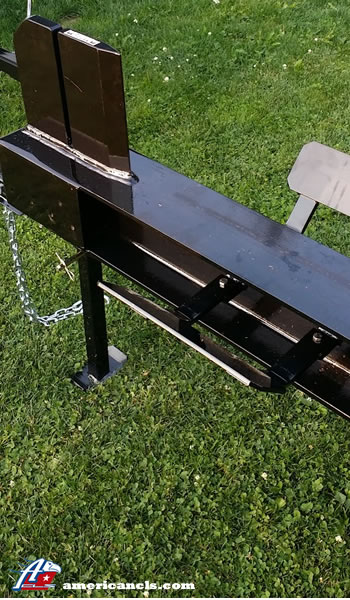

| Wedge Height | 10″ |
| Highway Tires | 13″ |
| Fully Assembled Machine (L X W X H) | 85″ X 35″ X 34″ |
| Weight | 559 lbs. |
| Coupler For Towing | 2″ |
| Finish | Powder Coat |
| Maximum Log Opening | 26″ |
| Hydraulic System – Oil Included | Yes |
| Engine | Briggs Intek or Honda GX |
AM-25HH High Boy
Ranchers, Large and Small Families, Firewood Businesses, Rental Companies all appreciate the capability of this machine. Starting at $3,230 the High Boy, AM-25HH, is built with so many different customers in mind. BUT, one common thread through all customers, is that they appreciate a machine that can be counted on year after year. Need to split longer logs ? Have a Maple Sugar Business or an Outdoor Furnace ? The High Boy AM-25HH is available in 24″, 30″, 36” and 48″ models.
REQUEST A QUOTE- AM-25HH - Standard Items
- AM-25HH - Options
- All Fluids Included
- Fully Run & Tested at our Facility
- 25″ Working Height
- 270 GX Honda ( 3 Year Warranty)
- 16 GPM 2-Stage Pump
- Heavy Duty 6″ Frame
- 13″ RIM, Highway Tires
- Auto Return Valve
- Powder Coat Finish
- 2″ Coupler with Safety Chains
- Wedge Backer for Optional 4-Way
- Bolt On Tabs for Cradles
- Bolt On Tabs for Fenders
- Bolt On Pan Capability
- Honda 270 GX Electric Start
- 4″ X 30″ X 2″ Cylinder
- 4″ X 36″ X 2″ Cylinder
- 4″ X 48″ X 2″ Cylinder

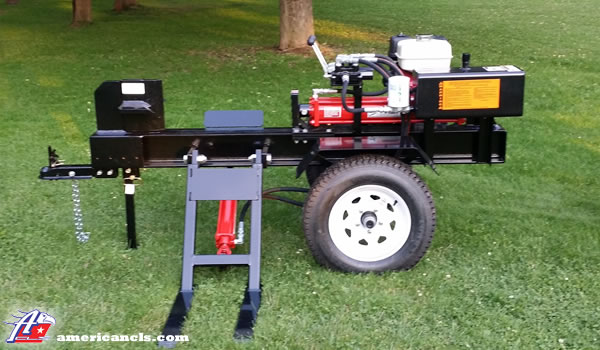

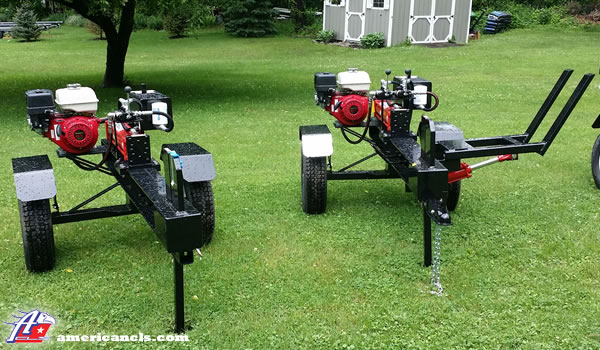

- Hydraulic Log Lift With Cradle

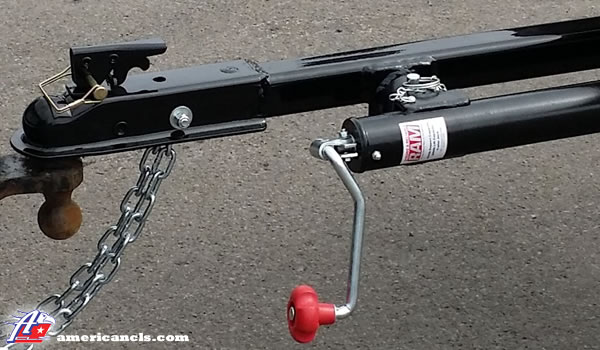

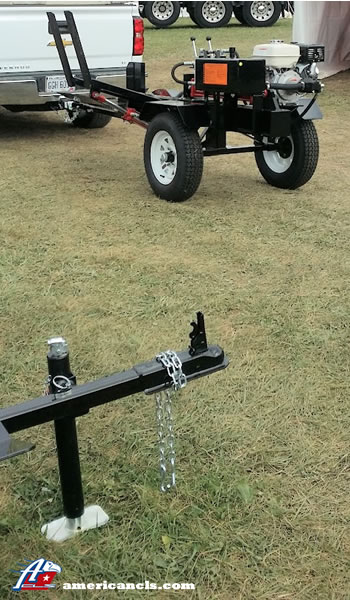

- Pans With Extended 2" Coupler / Crank Jack
- Cradle Pair
- Large Fenders
- 4-Way Wedge
- 6-Way Wedge
Photos of Options
Videos Splitting Wood
| Working Height | 25″ |
| Cycle Time | 10 Sec. |
| Hydraulic 2-Stage Pump | 16 GPM |
| Tie Rod Cylinder | Yes |
| Cylinder (Length X Diameter X Rod Size) | 4″ X 24″ X 2″ |
| Wedge Height | 10″ |
| Highway Tires | 13″ |
| Dimensions of Fully Assembled Machine (L X W X H) | 85″ X 35″ X 34″ |
| Weight | 697 lbs. |
| Coupler For Towing | 2″ |
| Finish | Powder Coat |
| Maximum Log Opening | 26″ |
| Hydraulic System – Oil Included | Yes |
| Engine | Honda GX |
