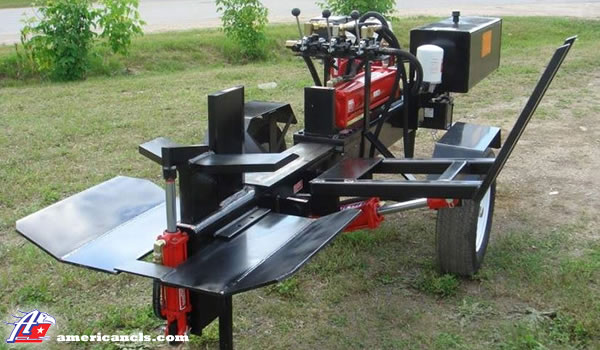

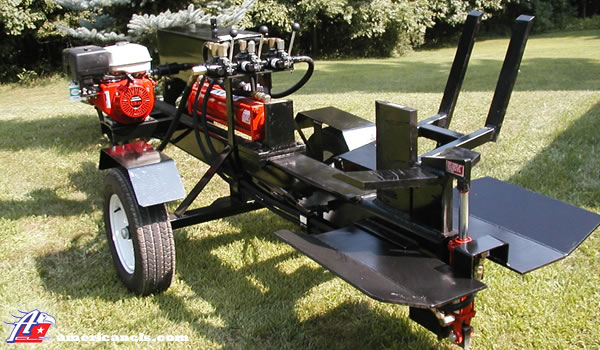

AM-26HW Hydraulic 4-Way
Our AM26HW-1322H combines a standard 12″ Tall Splitting Wedge with adjustable hydraulic wings. These wings can be lowered out of site or used to create a 4-Way Splitting wedge. When the wings are out of site, this machine can tackle the nasty wood with the full force of the 5″ Diameter Cylinder and 22 GPM 2-Stage Pump. This machine comes standard with 3/8″ Thick Pans. The only option left is either an Electric Start 390GX Engine and/or Hydraulic Log lift.
REQUEST A QUOTE- AM-26HW - Standard Items
- AM-26HW - Options
- Honda 390 GX Engine (13 HP)
- 5″ X 24″ X 2″ Hydraulic Cylinder
- 22 GPM 2-Stage Pump
- Oversized Heavy Duty Frame
- 12″ Wedge

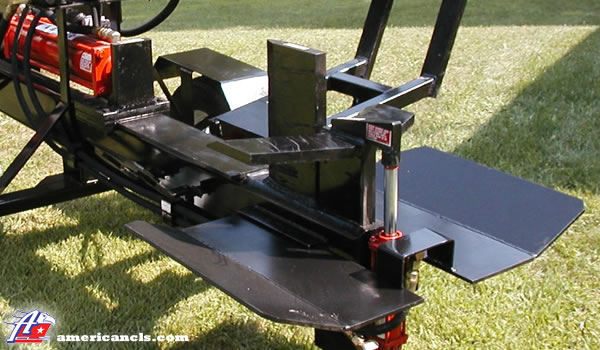

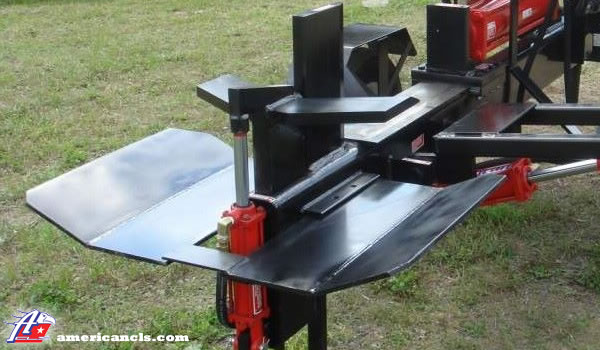

- Adjustable Hydraulic 4-Way
- Cradles
- Pans for Reverse Hitch Orientation
- Safety Chains
- 2″ Hitch
- 13″ Highway Tires
- Steel Fenders
- Hydraulic Log Lift with Log Cradle
- Honda 390 GX Engine ELECTRIC START
Photos of Options
Previous
Next
Videos Splitting Wood
Click To View Specifications
| Working Height | 25″ |
| Cycle Time | 9.8 Sec. |
| Cylinder | 24″ X 5″ X 2″ |
| Wedge Height | 12″ |
| Highway Tires | 13″ |
| Fully Assembled Machine (LxWxH) | 140″ X 46″ X 45″ |
| Weight | 1500 lbs. |
| Safety Chains | Standard |
| Coupler For Towing | 2″ |
| Finish | Powder Coat |
| Maximumn Log Opening | 26″ |
| Hydraulic System – Oil Included | Yes |
| Engine | Honda 390GX |
