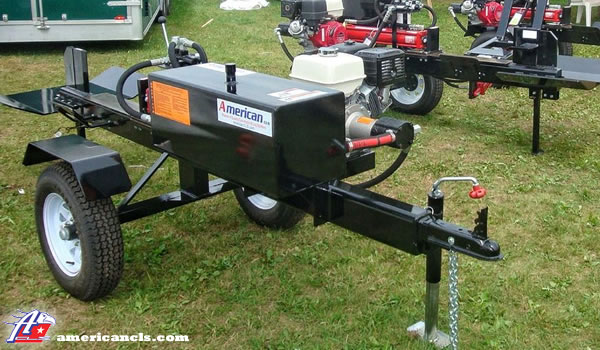

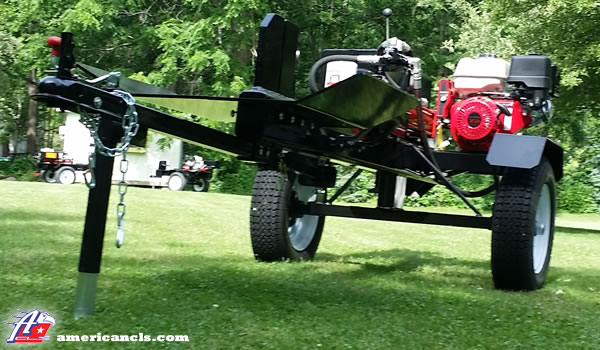

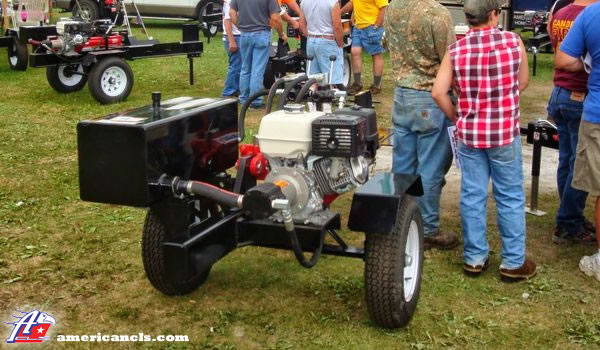

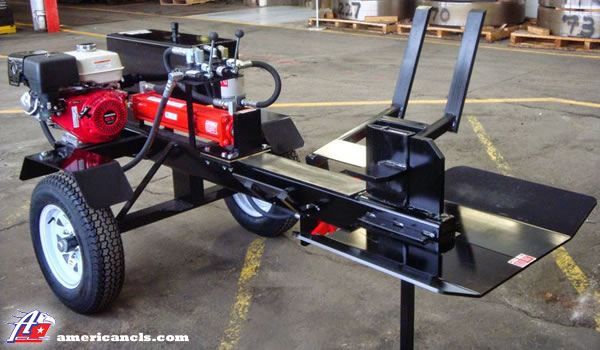

Super - AM25S-1322H
Throughout North America, owners of the AM-25S know what it takes to effectively manage firewood production. Base machine starting at $5,920.
If you need to split firewood quickly, with a commercial grade machine, look no further than the AM25S-1322H. This wood splitter has a blistering 6-7 second cycle time.
The Super is available in 24″, 30″, 36″, and 48″ models (for longer logs).
REQUEST A QUOTE- Click for Standard Features
- Click for Available Options
- All Oils and Fluids Included
- Run & Tested Prior to Shipment
- Working Height 25″
- Heavy Duty 4″ x 6″ x 1/2″ Tube
- Cold-Roll Steel Finish Slide
- 10″ Tall Wedge
- Auto Return Valve
- 390 GX Engine - Manual Start

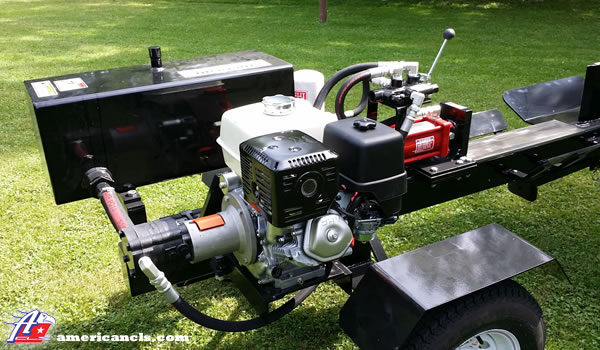

- 22 GPM, 2 Stage Hydraulic Pump

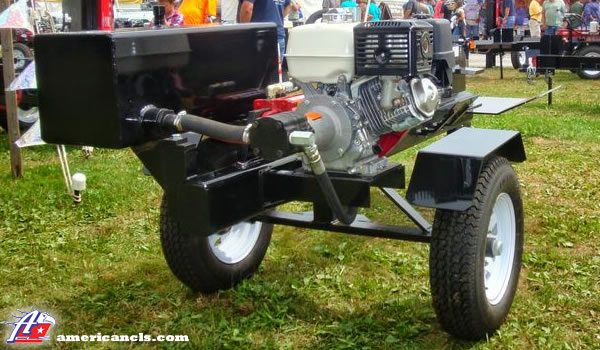

- 13″/5-Lug Highway Tires
- Powder Coat Finish
- Safety Chains
- 2″ Coupler
- 4″ x 24″ x 2″ Cylinder
- Tabs for Optional Cradles
- Tabs for Optional Fenders
- Bolt On Receiver for Optional Extended 2" Coupler with Pans
- Electric Start Honda 390 GX
- 4 x 30 x 2 Cylinder
- 4 x 36 x 2 Cylinder
- 4 x 48 x 2 Cylinder

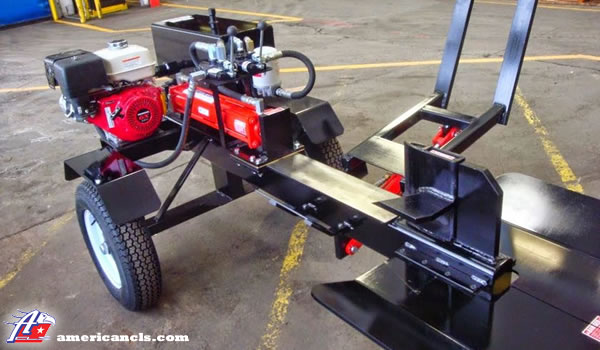

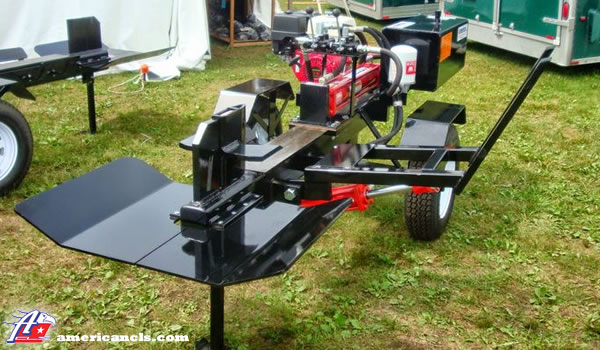

- Hydraulic Log Lift with Cradle
- Pans with Extended 2″ Coupler, Safety Chains and Crank Jack
- Cradles
- 4-Way Splitting Wedge
- 6-Way Splitting Wedge
- Fat Body Wedge

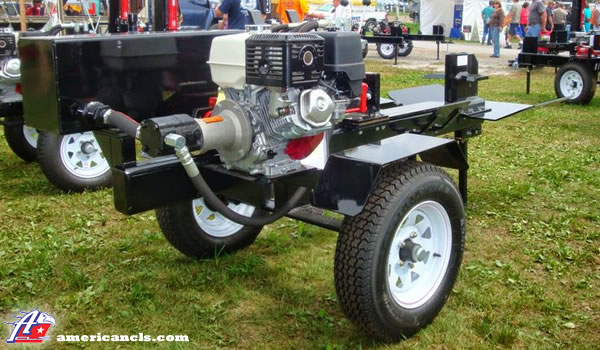

- Fenders
- Reverse Coupler Orientation
- Pans for Reverse Hitch Orientation
Super Options
Previous
Next
Videos Splitting Wood
Click To View Specifications
| Working Height | 25″ |
| Cycle Time | 6-7 Sec. |
| Hydraulic 2-Stage Pump | 22 GPM |
| Tie Rod Cylinder | Yes |
| Cylinder (Length X Diameter X Rod Size) | 4″ X 24″ X 2″ |
| Wedge Height | 10″ |
| Highway Tires | 13″ |
| Fully Assembled Machine (L X W X H) | 91″ X 43″ X 45″ |
| Weight | 995 lbs. |
| Coupler For Towing | 2″ |
| Finish | Powder Coat |
| Maximum Log Opening | 26″ |
| Hydraulic System – Oil Included | Yes |
| Engine | Honda 390 GX |
