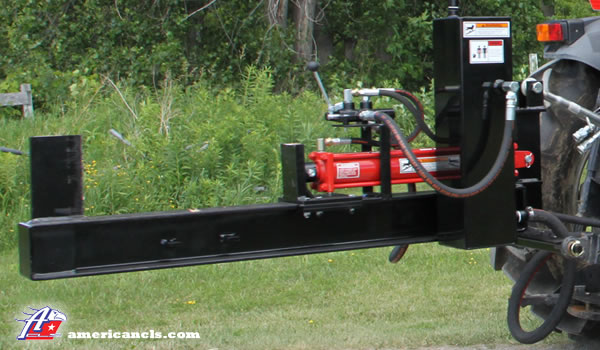

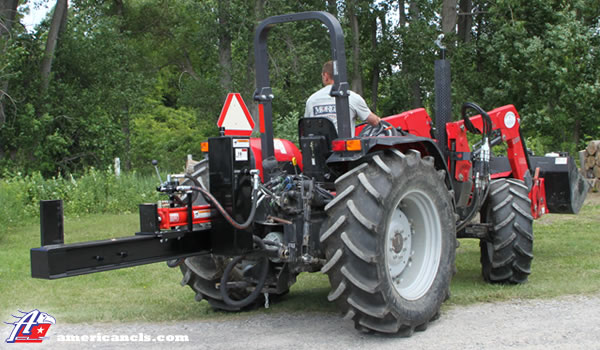

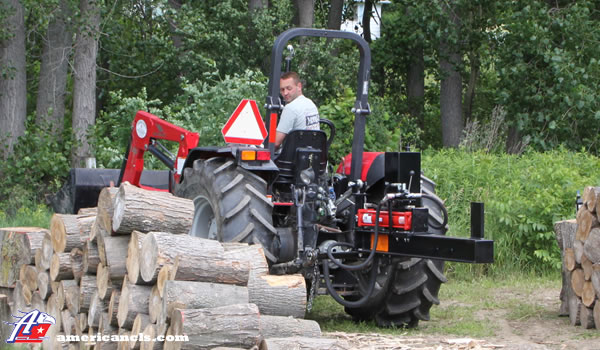

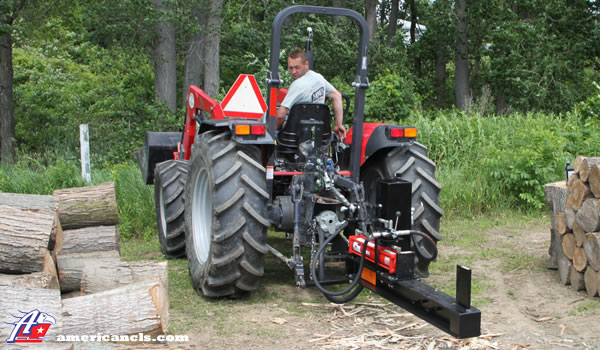

TM-24H Tractor Mount
This heavy duty tractor mount log splitter is ideal for tractors equipped with a 3-point hitch and PTO hydraulic system.
REQUEST A QUOTE- TM-24H - Standard Items
- TM-24H - Options
- 6″ I Beam
- 10″ Wedge
- Auto Return Valve with Fittings and Hoses
- 4 x 24 x 2 Cylinder
- Pre-Drilled Holes to Mount Draw Bar
- Bolt On Tabs for Cradles
- Powder Coat Finish
- 4 “x 30″ x 2” Cylinder
- 4 x 36″ x 2″ Cylinder
- 4 x 48″ x 2″ Cylinder
- Category #1 Draw Bar
- Category #2 Draw Bar
- Tractors Under 28HP – 11.4 GPM PTO KIT
- Tractors Over 28 HP – 21 GPM PTO KIT
- Some Assembly Required with ALL PTO KITS
- Reservoir – Included when you purchase a PTO KIt
- Will need to purchase Hydraulic Fluid Locally

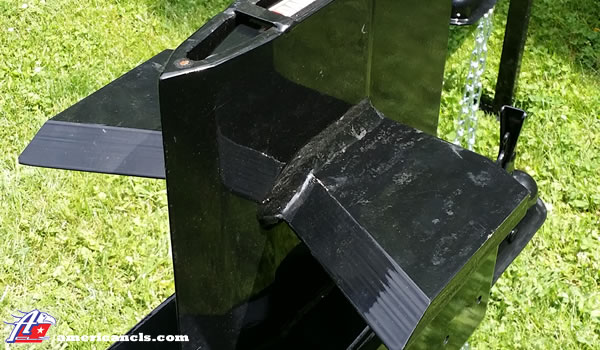

- 4-Way Slip on Splitting Wedge
- Cradles

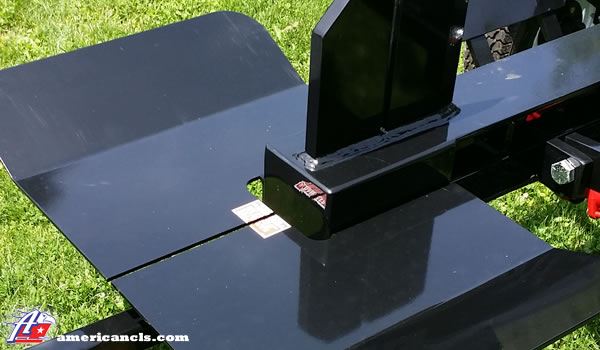

- Pans
- Hydraulic Log Lift
Photos of Options
Previous
Next
Videos Splitting Wood
Click To View Specifications
| Working Height | Tractor Hydraulics Control Height |
| Cycle Time | Varies by HP and PTO Pump Chosen |
| Cylinder Rating | 2500 psi |
| Cylinder | 4″ X 24″ X 2″ |
| Wedge Height | 10″ |
| Fully Assembled Machine (L X W X H) | 70″ X 15″ X 27″ |
| Weight | 327 lbs. |
| Finish | Powder Coat |
| Maximum Log Opening | 26″ |
| Hydraulic System – Oil Included | No |
Previous
Next

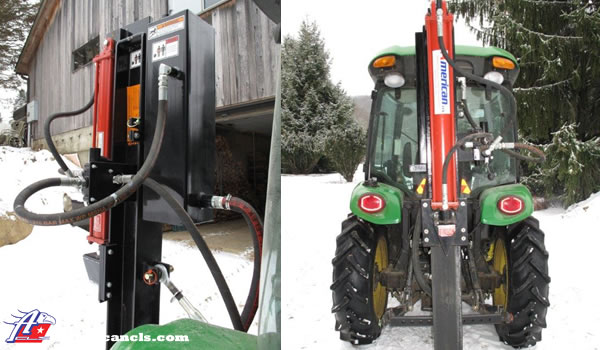

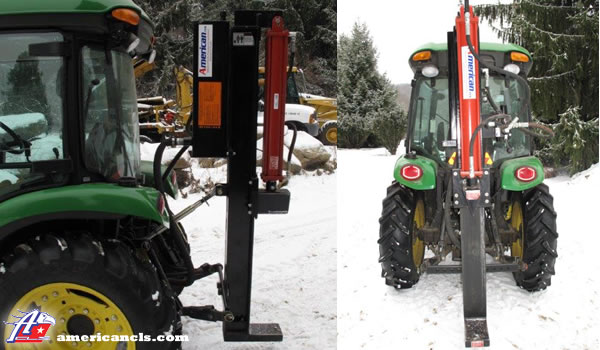

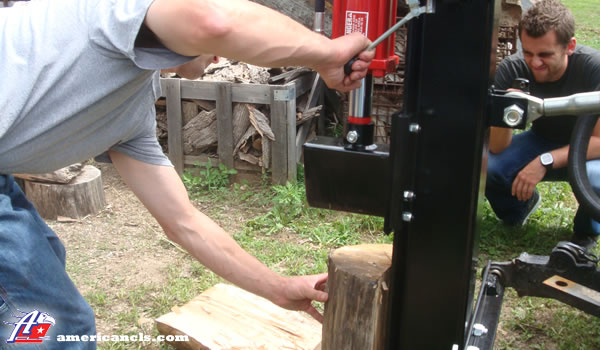

TM-24V Tractor Mount
Our Vertical Oriented Tractor Mount Splitters have 9″ Tall Splitting heads and come ready to split those Heavy over-sized rounds. PTO Kits are available for tractors unable to provide a minimum 10 GPM.
REQUEST A QUOTE- TM-24V - Standard Items
- TM-24V - Options
- 6″ I Beam
- 10″ Wedge
- Auto Return Valve with Hose andFittings
- Hoses & Fittings for Valve and Cylinder
- 4 x 24 x 2 Cylinder
- Powder Coat Finish
- 4 “x 30″ x 2” Cylinder
- 4 x 36″ x 2″ Cylinder
- Category #1 Draw Bar
- Category #2 Draw Bar
- Tractors Under 28HP – 11.4 GPM PTO KIT
- Tractors Over 28 HP – 21 GPM PTO KIT
- Some Assembly Required with ALL PTO KITS
- Reservoir – Included when you purchase a PTO KIT
- Hydraulic Fluid Must Be Purchased Locally
Photos of Options
Previous
Next
Videos Splitting Wood
Click To View Specifications
| Cylinder Rating | 2500 psi |
| Cylinder (Length X Diameter X Rod Size) | 4″ X 24″ X 2″ |
| Wedge Height | 8″ |
| Fully Assembled Machine (L X W X H) | 70″ X 15″ X 18″ |
| Weight | 360 lbs. |
| Finish | Powder Coat |
| Maximum Log Opening | 26″ |
| Hydraulic System – Oil Included | No |
